Опис
AD, DA, PT, TC Mixed;
Light capacity;
Low Cost;
one PLC can connect more than two BD boards, one of them is Analogue BD board, the other is communicating board
Performance specifications:
| Resolution(bit) | Input/Output | Corresponding range of values | Others | |||
| Input | Output | Sensor available | ||||
| DA | 12 | – | Current: 4~20mA | – | 0~2000 | |
| AD | 12 | Current: 4~20mA | – | – | 0~2000 | |
| PT | 14 | – | – | Sensor: Pt100:-100~600℃ |
-1000~6000 | |
| TC | 14 | – | – | Sensor: K type: -100~1200℃ J type: -100~600℃ |
-1000~12000 -1000~6000 |
|
Wecon LX3V series PLC module
| LX3V series BD module | Description |
| LX3V-2AD2DA-BD | 2 channels analog input（4-20mA)/2 channels analog output （4-20mA) |
| LX3V-2PT2DA-BD | 2 channels thermal resistance input/2 channels analog output（4-20mA) |
| LX3V-2TC2DA-BD | 2 channels thermal couple input/2 channels analog output |
| LX3V-2AD-BD | 2 channels analog input(4-20mA) |
| LX3V-2DA-BD | 2 channels analog output(4-20mA) |

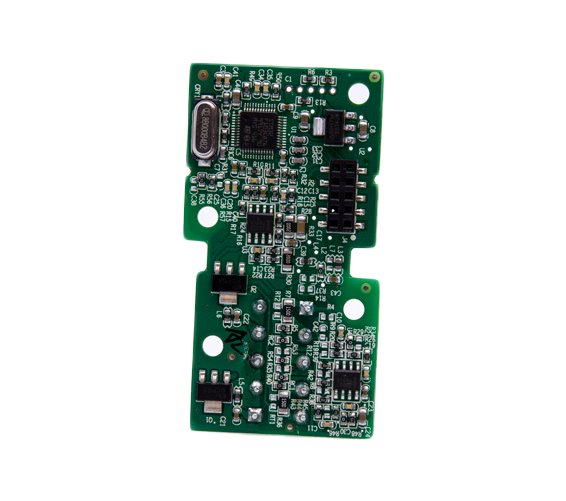

| LX3V-2PT-BD | 2 channels thermal resistance input |
| LX3V-2ТС-BD (developing) | 2 channels thermal couple input |
| LX3V-485-2BD (developing) | 2 channels RS485 communication board |
| LX3V-CAN-BD (developing) | 1 channel CAN communication board |
| LX3V-ETH-BD (developing) | 1 channels Ethernet communication board |
